Female SMT Flat Solder Usb Type C Receptacle C Type Female Connector AF 24 Pin

  • 1
  • 2

Brand Name : Jinze

Model Number : UB118-LBA10-RHA

Certification : SGS/ROHS

Place of Origin : China

MOQ : 1000pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 80000pcs/ Day

Delivery Time : 15-25 Days

Packaging Details : Reel Packaging

Material : LCP+40% GF 94 V-0

Color : Black

Gender : Receptacle (Female)

Application : Consumer Electronics

Number of Contacts : 24 Contact

Number of Ports : 1 Port

Current Rating : 5.0AMP

Mounting Angle : Right Angle

Mounting Style : PCB Mount

Factory Pack Quanity : 1000pcs per Reel

Contact Now

Product Description

Female SMT Flat Solder Usb Type C Receptacle C Type Female Connector AF 24 Pin

Type-C receptacle can either provide power as a "Source" or consume power as a "Sink"; this usually corresponds to whether the port is a USB host (Downstream Facing Port, or DFP) or USB device (Upstream Facing Port, or UFP). The configuration channel, pins are used to determine the role of a port when it is connected.

We have a lot of different types of type C connector, such as SMT/DIP/Sink plated, also have different heights and different pins, welcome to contact us!

Specifications:

Current Rating 5.0AMP
Contact Resistance 40mΩ Max
Withstanding Voltage 100VAC R.M.S
Insulation Resistance 100mΩ Min
Mating Force 5~20N
Unmating Force 8~20N
Durability Cycle 10000 Cycles
Operation Temperature -40℃ to +85℃
Contact Material Brass
Contact Plating Au or Sn over Ni
Insulator Material LCP

Images:

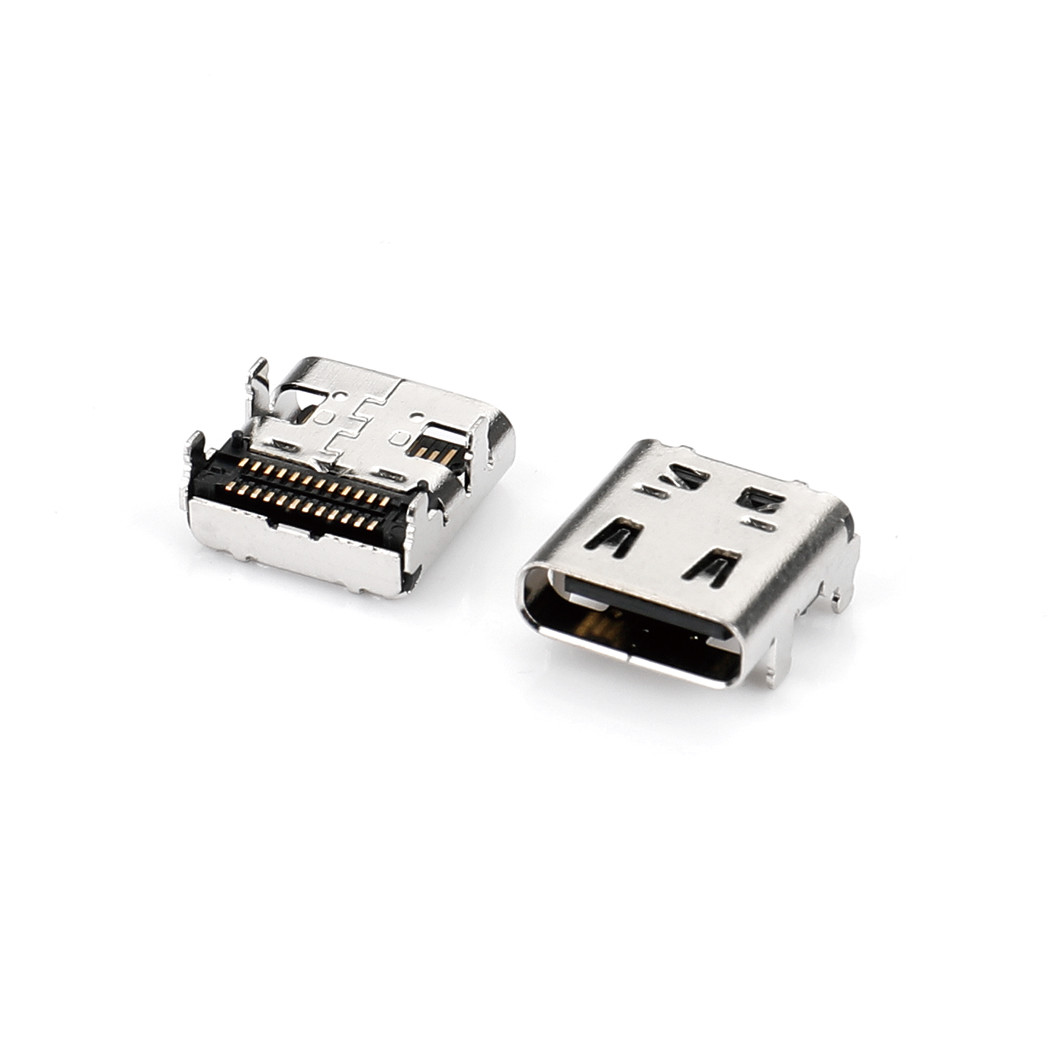

Female SMT Flat Solder Usb Type C Receptacle C Type Female Connector AF 24 Pin

Drawings:

Female SMT Flat Solder Usb Type C Receptacle C Type Female Connector AF 24 Pin

UB118-LBA10-RHA.pdf, if you need the Drawing, pls download it!
